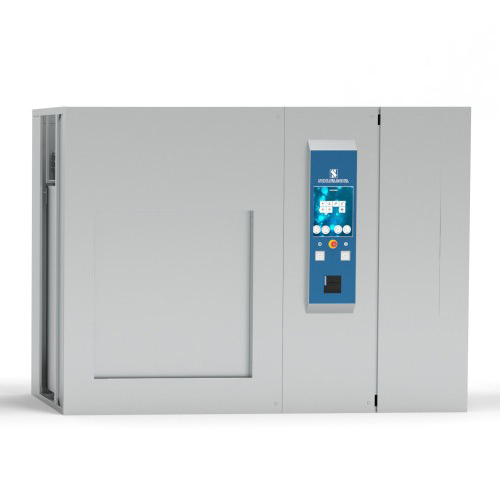

Steam sterilizer Series SHS.4

Technical Specifications

Chamber volume: 312–895 liters

Door type: 01 or 02 automatic vertical sliding doors

Control system: Single PLC (Programmable Logic Controller)

Operation: Fully automatic

Display: 01 17-inch full-color LCD touchscreen

Integrated thermal printer: touchscreen interface

Alarm types: audible, visual, and paper printout

Monitoring: pressure and temperature of the chamber, jacket, and steam generator

Steam control: via pneumatic valve

Timer setting: 1–9,999 minutes

Pre-programmed cycles available

Machine construction

Outer casing & partition panel: electrostatic-coated stainless steel AISI 304

Chamber, jacket, and door: stainless steel AISI 316L

Chamber

Design temperature: 148°C

Maximum operating temperature: 134°C (standard cycle)

Steam

Type: up to 100% saturated steam

Source: integrated boiler

Steam generator (boiler)

Stainless steel AISI 304

Vacuum system

Recirculating vacuum pump

Safety and quality features

Built-in safety and quality assurance functions
